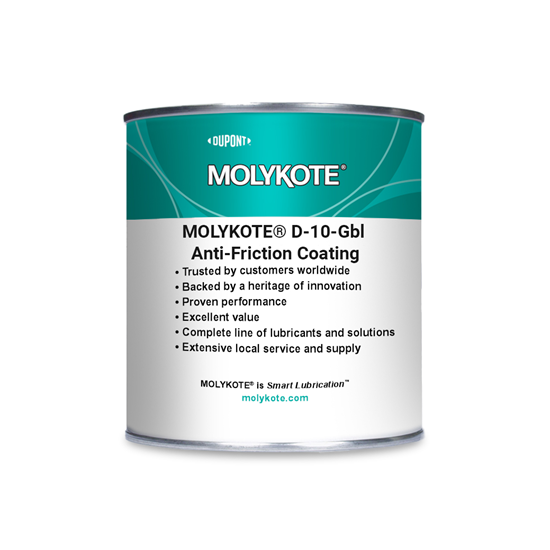

MOLYKOTE® D-10-Gbl Anti-Friction Coating

26

MOLYKOTE® D-10-GBL Anti-Friction Coating is a specialty lubricant for metal combinations involving slow to medium speeds and low to medium loads. Learn more.

Documents

SDS
TDS
Get A Quote Request A Sample Talk to an Expert 425.378.8694 425.378.8694 Call To Order

Product Overview

MOLYKOTE® D-10-GBL Anti-Friction Coating is a heat-cured, dry film lubricant with a high viscosity designed to withstand long-term surface wear. It provides excellent resistance to high-temperature environments, oils, greases, and other solvent chemistries without damaging the metal surface.

MOLYKOTE® D-10-GBL can be applied through screen printing, spraying, or brushing and is well suited for equipment subjected to slow or moderate speeds and low to medium loads.  MOLYKOTE® D-10-GBL can be cured at 200°C in 20 minutes; however, there is a recommended flash-off stage at 80°C for 10 minutes to evaporate the solvent prior to curing. For more specifics, please reach out to your sales representative.

Applications

Prior to applying MOLYKOTE® D-10-GBL, the surface should be cleaned and degreased. For superior surface adhesion, pretreatment phosphating or sandblasting is recommended.

MOLYKOTE® D-10-GBL can be applied via spraying, screen printing, or brushing. Depending on the application method, the anti-friction coating may be diluted to achieve appropriate viscosity. It should be applied to a thickness of 15 to 20 µm.

MOLYKOTE® D-10-GBL Anti-Friction Coating can be used in a wide variety of applications and equipment types, including the following:
Metal-on-metal surfaces with low to high speeds
Permanent lubrication of heavy-loaded contacts
Automotive pistons
Diesel combustion engines
Compressor and piston pumps
Hydraulic and pneumatic equipment


Features & Benefits

High resistance to fuels, lubricants, and solvents
Excellent thermal stability
Long-term wear protection
Extended-term service life
High viscosity—suitable for screen printing

Problems Solved

Dry film loss from washout or solvent absorption
High friction and wear in engine components
Difficult-to-apply dry film lubricants

Product Specifications

Product type: Dry film lubricant coating, solventborne
Solid lubricant: Graphite
Cure temperature: 200°C (392°F)
Low temperature: −40°C (−40°F)
High temperature: 340°C (644°F)
Color: Black
Density at 23°C: 1.3 g/mL
Dynamic viscosity at 23°C: 35,000 mPa·s
Flash point: 77°C (171°F)
Shelf life: 12 months when stored at or below 23°C in unopened containers
